Hook Type Shot Blast Machine

  • Published:
  • Views:177

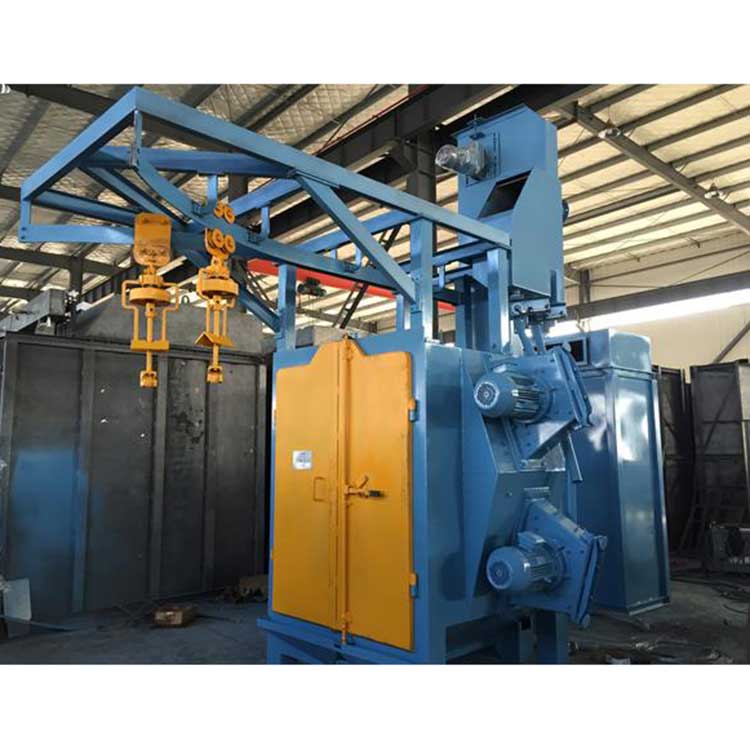

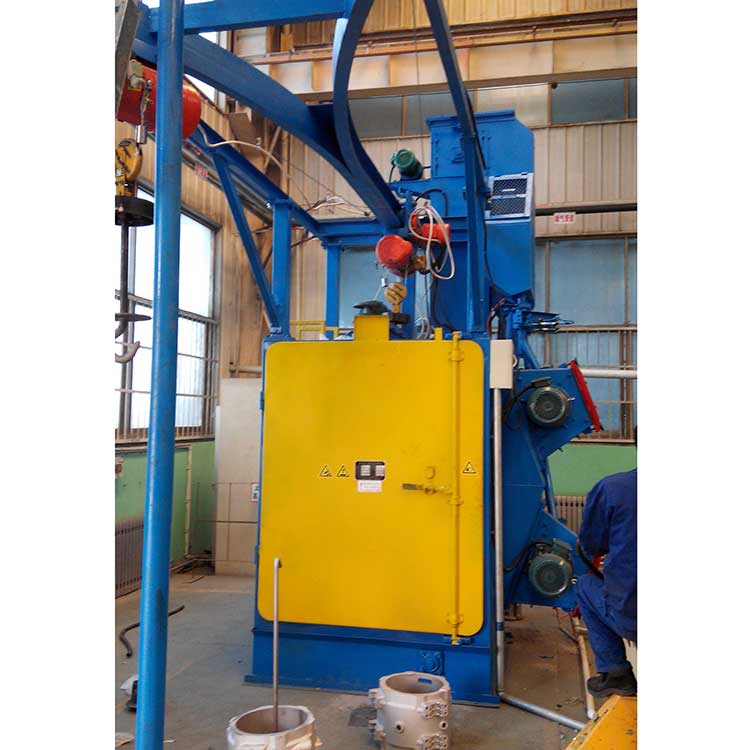

A hook type shot blast machine, also known as an overhead rail shot blast machine or monorail shot blast machine, is a specific type of shot blast machine that is designed for the surface preparation and cleaning of large, heavy workpieces. This machine is characterized by the use of an overhead rail system that carries the workpieces through the blasting chamber, allowing for efficient and continuous processing. Here's an overview of a hook type shot blast machine:

1. Design and Configuration: A hook type shot blast machine consists of a blasting chamber, an overhead rail system, and a blast wheel or blast nozzles. The blasting chamber is typically enclosed to contain the abrasive material and dust generated during the blasting process.

2. Overhead Rail System: The key feature of a hook type shot blast machine is the overhead rail system. It consists of a track or rail installed in the blasting chamber, along with a trolley system and hooks. The workpieces are suspended from hooks or hangers, which are attached to the trolley. The trolley moves along the rail, carrying the workpieces through the blasting chamber at a controlled speed.

3. Blast Wheel or Blast Nozzles: Hook type shot blast machines are equipped with one or more blast wheels or blast nozzles, depending on the specific design and application requirements. Blast wheels are commonly used and consist of a high-speed rotating wheel that throws the abrasive material onto the workpiece. Blast nozzles, on the other hand, use compressed air to propel the abrasive material onto the surface.

4. Surface Treatment: As the workpieces pass through the blasting chamber, the blast wheel or blast nozzles propel abrasive material, such as steel shots or grits, onto the surface of the workpieces. The high-speed impact of the abrasive particles removes contaminants, scale, rust, paint, or other unwanted coatings, resulting in a clean and prepared surface.

5. Applications: Hook type shot blast machines are suitable for various applications, especially for larger and heavier workpieces. Common applications include the surface cleaning and preparation of steel structures, castings, forgings, and welded components. Industries such as automotive, foundry, steel fabrication, shipbuilding, and construction often utilize hook type shot blast machines for efficient and effective surface treatment.

6. Benefits:

   - High Productivity: Hook type shot blast machines allow for continuous processing, improving productivity compared to batch processing methods.

   - Efficient Cleaning: The high-speed impact of abrasive particles ensures thorough cleaning of large and heavy workpieces.

   - Customization Options: Hook type shot blast machines can be customized to accommodate different workpiece sizes, weights, and production requirements.

   - Consistent Results: The controlled movement of workpieces through the blasting chamber ensures uniform and consistent surface treatment.

   - Dust Containment: The enclosed blasting chamber helps contain the dust and abrasive material, reducing environmental pollution and improving operator safety.

Proper operation, maintenance, and adherence to safety guidelines are essential when using hook type shot blast machines. Regular inspection and replacement of worn parts, as well as proper selection of abrasive material and control of blasting parameters, contribute to achieving the desired surface finish and prolonging the machine's lifespan.
