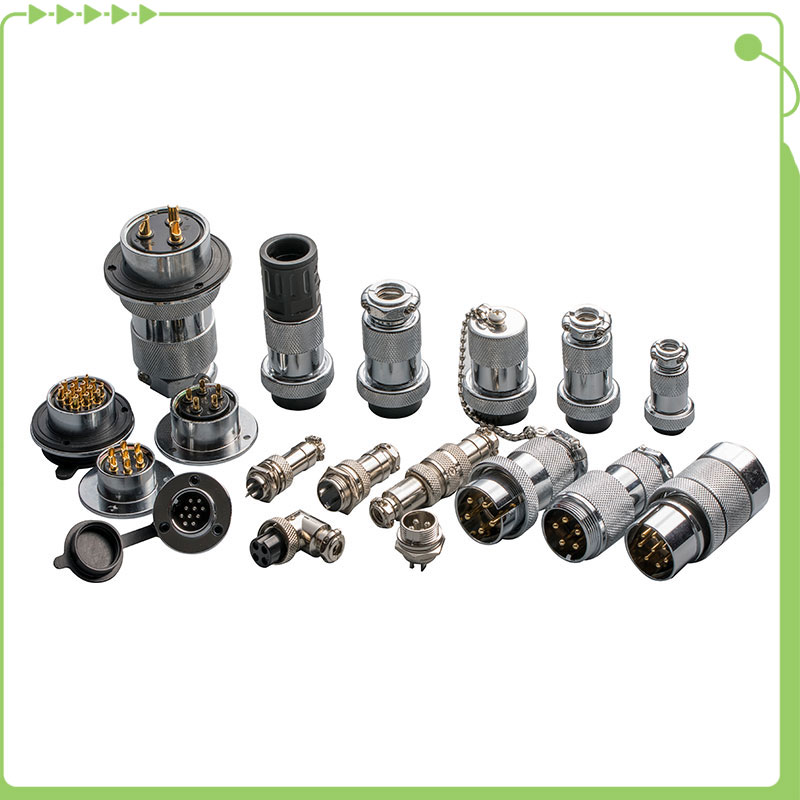

How to connect a circular connector?

Connecting a circular connector involves several steps to ensure a secure and reliable connection. Here's a general guide on how to connect a circular connector:

1. Inspect the Connector: Before connecting the circular connector, visually inspect it for any damage, dirt, or debris that could affect the connection. Ensure that the pins or sockets are clean and free from obstructions.

2. Align the Connector: Position the mating halves of the circular connector so that the pins or sockets are properly aligned. Most circular connectors have keying features or alignment marks to ensure correct alignment.

3. Insert the Connector: Gently insert the male connector (with pins) into the female connector (with sockets) in a straight, axial motion. Take care not to force the connectors together, as this could damage the pins or sockets.

4. Apply Pressure: Once the connectors are aligned, apply gentle pressure to push the connectors together. You should feel a slight resistance as the connectors engage. Continue to apply pressure until the connectors are fully seated.

5. Secure the Locking Mechanism: Many circular connectors feature a locking mechanism to ensure a secure connection. Depending on the connector type, this may involve twisting a coupling ring, engaging a bayonet lock, or securing a latch. Follow the manufacturer's instructions to properly secure the locking mechanism.

6. Check the Connection: After connecting the circular connector, visually inspect the connection to ensure that the mating halves are fully engaged and aligned. Wiggle the connectors slightly to check for any signs of looseness or poor contact.

7. Test the Connection: If possible, perform a functional test to verify that the connection is secure and reliable. This may involve applying power or signals through the connector to confirm proper functionality.

8. Disconnecting the Connector: To disconnect the circular connector, reverse the connection process by releasing the locking mechanism (if applicable) and gently pulling the connectors apart in a straight, axial motion. Avoid pulling on the cables themselves, as this could cause damage.

By following these steps, you can safely and effectively connect a circular connector, ensuring a reliable electrical or mechanical connection for your application. Be sure to refer to the manufacturer's documentation for specific instructions and guidelines for your particular type of circular connector.
