Key features and functions of a DC MCB

2023-10-16

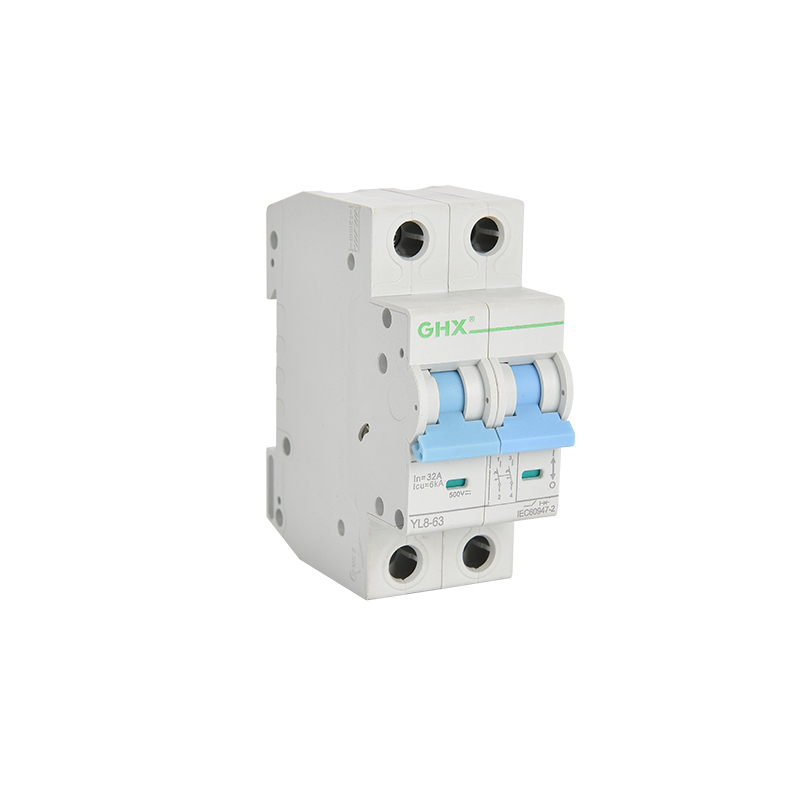

A DC MCB, or DC Miniature Circuit Breaker, is an electrical protection device designed to automatically disconnect the circuit it controls in the event of a fault or overload in a direct current (DC) electrical system. DC MCBs serve a similar purpose to their AC (alternating current) counterparts but are specifically designed to handle the characteristics and requirements of DC circuits. They are commonly used in various applications, including solar power systems, automotive electronics, telecommunications, and industrial DC power distribution.

Here are the key features and functions of a DC MCB:

1. Overcurrent Protection: The primary function of a DC MCB is to provide overcurrent protection. It automatically opens (trips) the circuit when it detects an excess current condition caused by a fault, short circuit, or overload. This action prevents further damage to the circuit and connected devices.

2. Voltage Rating: DC MCBs are available in various voltage ratings to match the DC voltage of the electrical system they are intended to protect. Common voltage ratings include 12V, 24V, 48V, 72V, and higher, depending on the application.

3. Current Rating: MCBs are available in a range of current ratings, typically measured in amperes (A). Users select an MCB with a current rating that matches the expected load current of the circuit.

4. Trip Characteristics: DC MCBs are available with different trip characteristics, including B (standard), C (medium-delay), and D (long-delay). These trip characteristics determine how quickly the MCB responds to overcurrent conditions.

5. Polarity Sensitivity: Some DC MCBs are polarity-sensitive, meaning they are designed to operate correctly in specific polarity configurations (e.g., positive or negative ground systems). It's important to choose an MCB that matches the polarity of your DC system.

6. Mounting: DC MCBs can be installed in electrical panels or enclosures, similar to AC MCBs. They may be DIN rail-mounted or panel-mounted, depending on the application.

7. Mechanical Toggle or Rocker Switch: DC MCBs typically have a mechanical toggle or rocker switch that allows users to manually reset the breaker after it has tripped due to an overcurrent event.

8. Status Indicators: Some DC MCBs include status indicators that provide visual confirmation of the breaker's status (e.g., whether it is in the "on" or "off" position).

Applications of DC MCBs include:

- Solar Power Systems: DC MCBs are used to protect the DC side of solar panels, photovoltaic arrays, and solar inverters in solar power systems.

- Automotive and Marine Electrical Systems: DC MCBs protect electrical circuits in automobiles, boats, and recreational vehicles from overcurrent conditions.

- Telecommunications: They are used to safeguard DC-powered equipment in telecom infrastructure and data centers.

- Industrial DC Power Distribution: In industrial settings, DC MCBs protect equipment and machinery powered by DC sources, such as battery systems.

Proper selection and installation of DC MCBs are crucial to ensure the safety and reliability of the DC electrical system. It's essential to consider factors such as the voltage rating, current rating, trip characteristics, and application requirements when choosing a DC MCB. Additionally, DC MCBs should be installed by qualified electricians or professionals familiar with DC electrical systems to ensure correct and safe operation.
