The Brief Introduction to the shell mold casting process

Shell mold casting is a type of foundry process that is used to produce high-quality metal castings. In this process, a mold is created from a mixture of resin-coated sand that is packed around a pattern. The mold is heated until the resin coating melts and forms a shell-like surface on the inside of the mold cavity. The pattern is then removed, leaving behind a cavity in the shape of the desired part.

Pattern creation: A pattern is created using wood, plastic, or metal, which is the exact replica of the part that needs to be cast.

Mold preparation: The pattern is then placed in a flask, which is filled with a fine-grain sand mixture coated with a thermosetting resin. The sand mixture is carefully tamped down around the pattern to form a mold.

Shell creation: The mold is then heated to a temperature of about 200-250°C (390-480°F) to cure the resin and harden the sand. This creates a shell-like surface on the inside of the mold cavity.

Pattern removal: Once the shell has hardened, the flask is inverted and the pattern is removed, leaving behind a cavity in the shape of the desired part.

Casting: The shell mold is then placed in a pouring cup and molten metal is poured into the cavity. The metal fills the space left by the pattern and takes on its shape.

Cooling: The metal is allowed to cool and solidify, forming the finished casting.

Shell removal: Once the metal has cooled and solidified, the shell is removed from the casting. This can be done by breaking it off or by using chemicals to dissolve the resin.

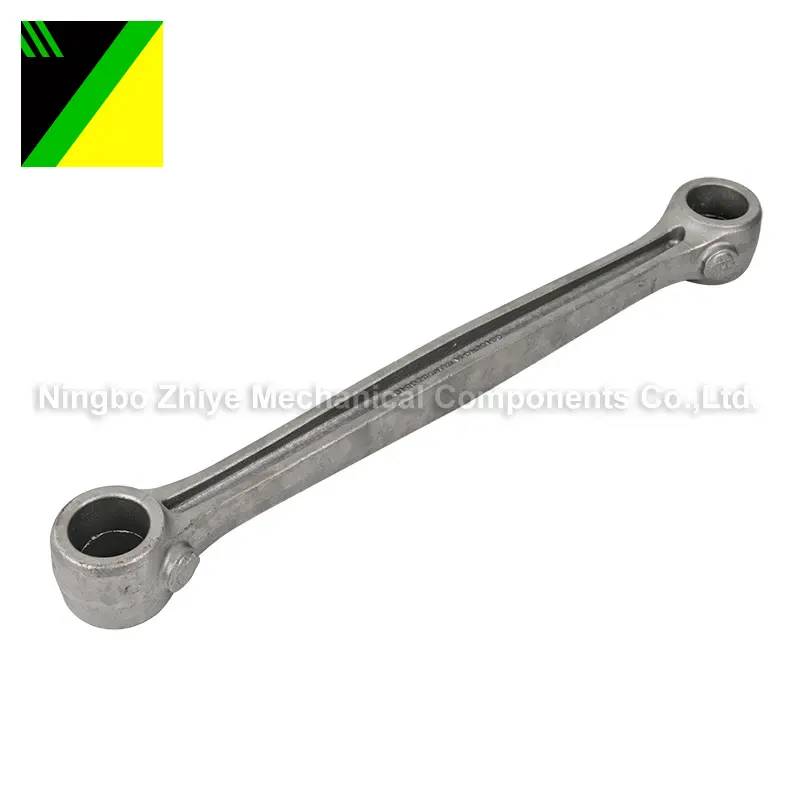

Finishing: The Shell Mold Casting for Connecting Rod may require finishing operations such as grinding, sanding, or polishing to achieve the desired surface finish and tolerances.

The entire shell mold casting process can take several hours or even days depending on the complexity of the part and the size of the casting.
